Description

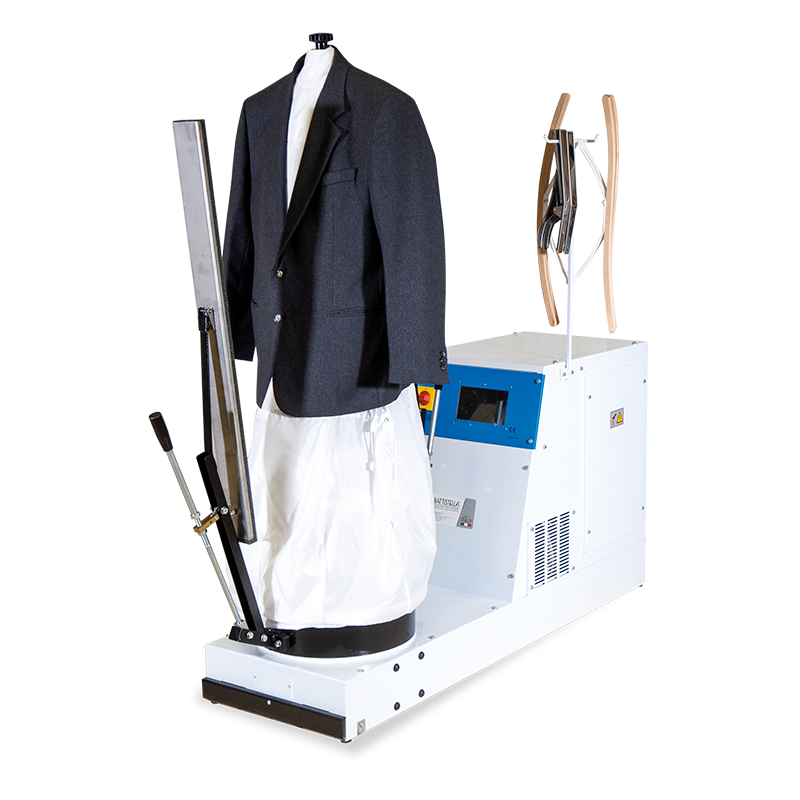

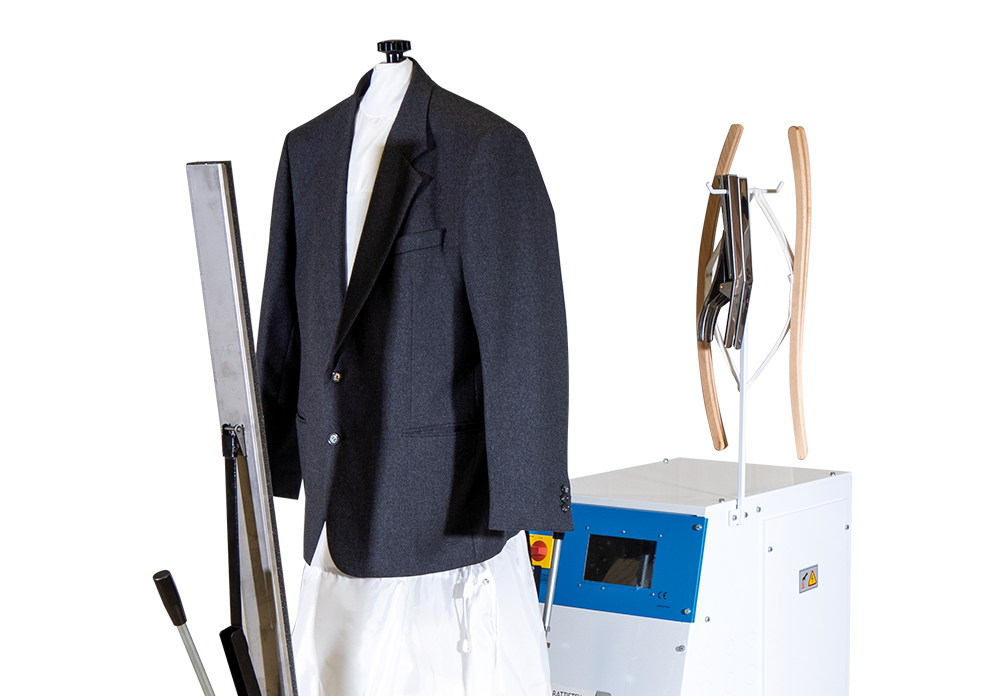

Steaming and blowing dummy with automatic steam generator 9kW power (12kW upon request) and 10l boiler capacity, operating steam pressure 5 bar, completely automatic working cycle equipped with 3 timers (steaming, hot and cold air blowing), blowing unit 1,25kW, adjustable shoulder width and trunk size, front and rear clamp, sleeve formers and clamps.
Overall dimensions
58x144x160 H cm
Packaging
1,6 m³
Weight
135 Kg
Pump power
0,7 HP
Superheater power
2,0 W
Blowing motor power
1,75 HP
Boiler capacity
10 L
Boiler power
9 Kw (12 Kw by request)
Steam working pressure
5 BAR
Standard voltage
400 V+N – 50 Hz
Voltage on request
230 V – 50 Hz
